Ball Valve
Ball valves are located all along the length of the medical gas pipeline system, from the source up to the buildings.
Inside the production room, they ensure the isolation of certain components in order to operate maintenance activities. They are also located at the entrance of each building to shut-off the medical gases in case of emergency. Ball valves are also incorporated in most of medical gas production plants or valve cabinets and AVSU.

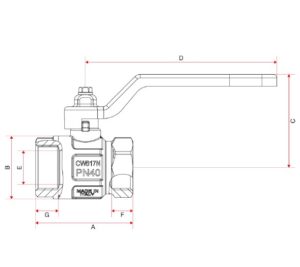

Our ball valves are robust and designed for an operating pressure up to 50 bar. They are available in all sizes from 1/4” to 4” (BSP or NPT) , in male or female configuration with several types of handles.
| Diameter (inches) | Nominal diameter | Operating pressure (bar) |
|---|---|---|
| 1/4" | 8 | 50 |
| 3/8" | 10 | 50 |
| 1/2" | 15 | 50 |
| 3/4" | 20 | 40 |
| 1" | 25 | 40 |
| 1"1/4 | 32 | 30 |
| 1"1/2 | 40 | 30 |
| 2" | 50 | 25 |
| 2"1/2 | 65 | 18 |
| 3" | 80 | 16 |
| 4" | 100 | 14 |
